Structure

Introducing the 25 Pack Classroom Set of the FRC Robot Basics Guidebook The FRC Robot Basics Guidebook is your go-to resource for understanding the fundamental components and techniques used in the FIRST Robotics Competition. Whether you’re a...

3/8 Nut Strips are compatible with the REV ION System featuring convenient 1/2in spaced #10-32 threaded holes that are inline with each other allowing easy fastening of aligned plates and structure without the need for individual nuts...

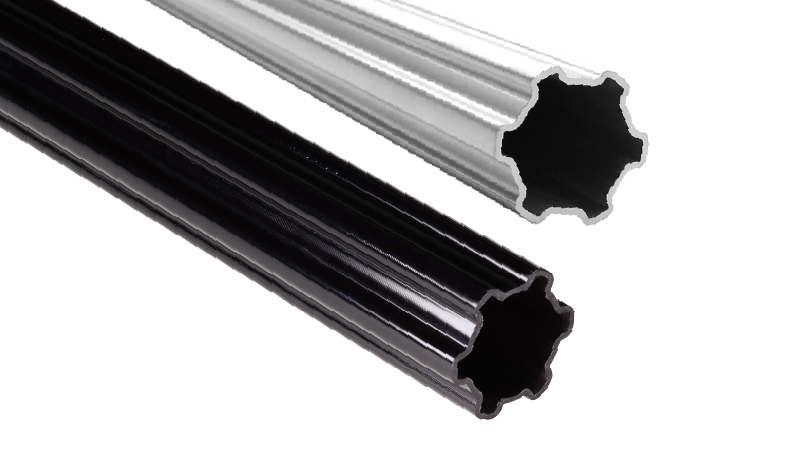

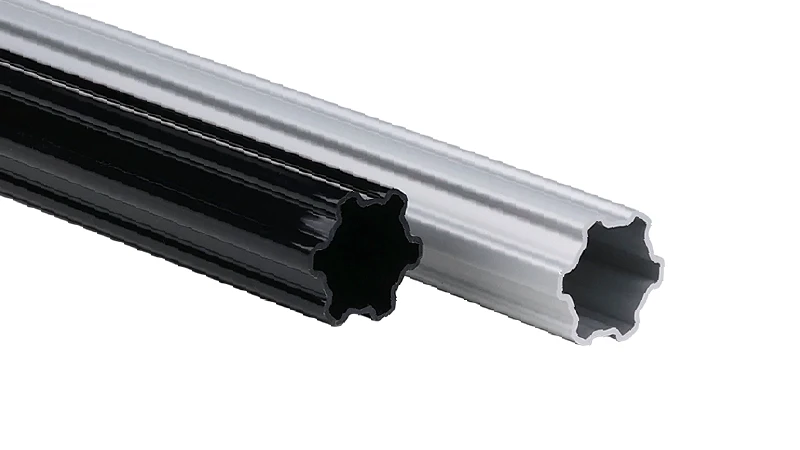

The MAXSpline Shaft is compatible with the REV ION System. The shaft is an extruded aluminum MAXSpline that provides a high strength alternative to 1/2in hex shaft that can interface with any REV ION System components with a MAXSpline bore. The...

Dead Axle Tube is compatible with the REV ION System and can be used with 3/4in Needle Bearing Carrier (REV-21-2385) and MAXSpline Shaft (REV-21-2520) as the dead axle in a dead axle roller. Can also be used with custom rollers and as...

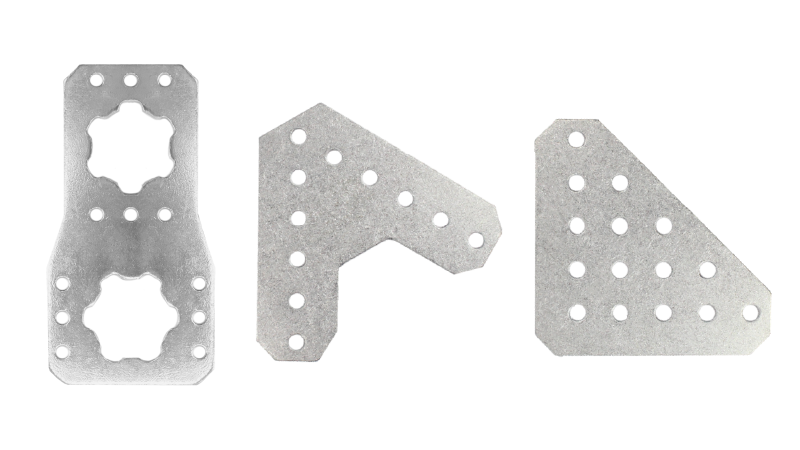

MAX Pattern Plates are compatible with the REV ION System and feature the all-new MAX Pattern: a MAXSpline bore surrounded by #10 clearance holes on a 0.5in grid. The plates are available in various lengths, with the pattern repeating every 2in...

MAXSpline Brackets are compatible with the REV ION System and are designed to mount to pieces of MAXTube - 1x2 - with MAX Pattern while maintaining proper pattern spacing. Specifications Material: Aluminum 5052 Weights: MAXSpline Bracket - Stacked: 35g...

1in Brackets are compatible with the REV ION System and feature #10 clearance holes on a 1/2in pitch. Using these brackets with any of our MAXTube or ION Extrusion allows for easy construction of robot frames, mechanisms, and structure. Lap Joint...

These ION Motor Brackets are compatible with the REV ION System. The ION UltraPlanetary Face Mount Bracket (REV-21-2046) allows for easy mounting of our UltraPlanetary Gearbox to any of our MAXTube products. Each plate features 2x #10-32 tapped inserts...

The Aluminum Angle 0.74in x 0.74in is a robust and lightweight solution for attaching and connecting components in your robot design. Made from the same clear anodized aluminum as MAXTube, this angle iron-shaped extrusion is designed for compatibility...

The MAXPlanetary Double Motor Adapter seamlessly integrates with the REV ION Build System, enabling the side-by-side mounting of MAXPlanetaries, UltraPlanetaries, or SPARK Flex/NEO Vortex combos onto MAXTube - 2x1 with MAX Pattern. This compact solution...

The Ballast Block - 3in x 2in x 1in is a steel weight block weighing 1.42 pounds (643g), designed for easy integration with the ION Build System. It features a staggered hole pattern with twenty (20) #10-32 counterbored through holes and twenty (20)...

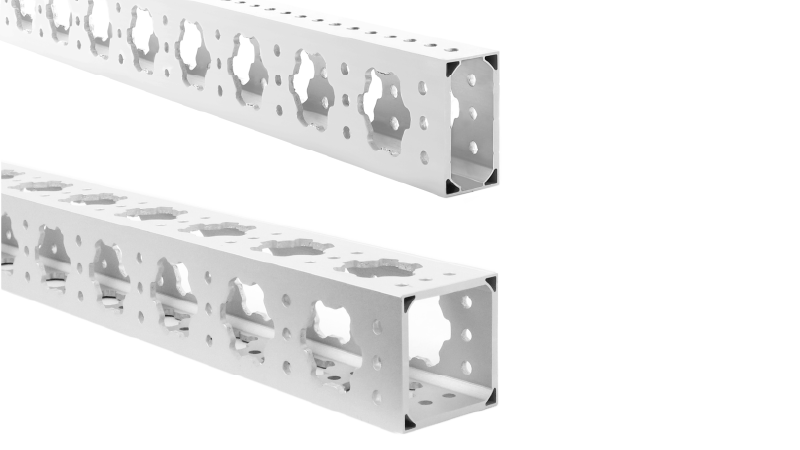

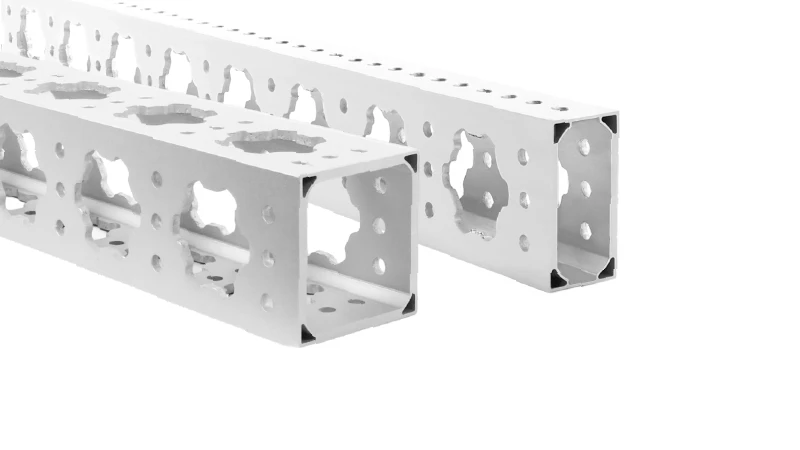

MAXTube is compatible with the REV ION System and is a strong extruded aluminum tubing that features various hole patterns that make robot structures easier to build. Hole patterns range from simple #10 clearance hole grid patterns to a repeated MAX...

MAXTube 2x1 is durable, extruded aluminum tubing optimized for robot structures and fully compatible with the REV ION System. It features #10 clearance holes spaced 0.5 inches apart on all 1-inch sides and offers multiple configurations: solid, grid...

MAXTube 1x1 is a versatile, extruded aluminum tubing designed for building strong, reliable robot structures. Fully compatible with the REV ION System, it features #10 clearance holes spaced 0.5 inches apart on all four sides, simplifying design and...

MAXTube is compatible with the REV ION System and is a strong extruded aluminum tubing that features various hole patterns that make robot structures easier to build. Hole patterns range from simple #10 clearance hole grid patterns to a repeated MAX...

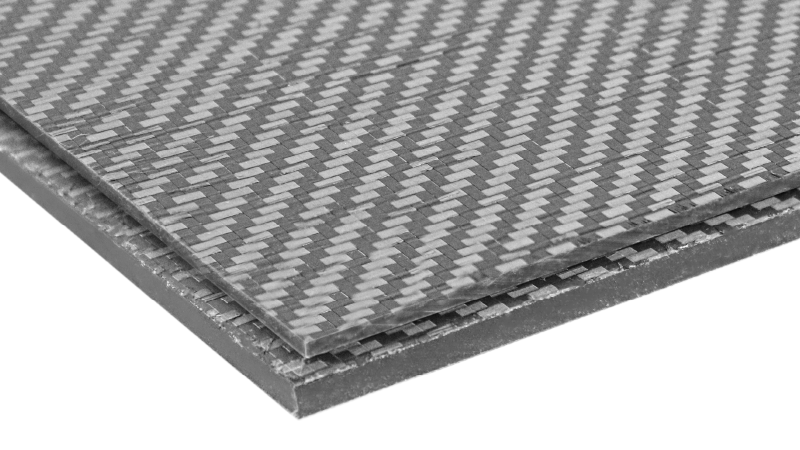

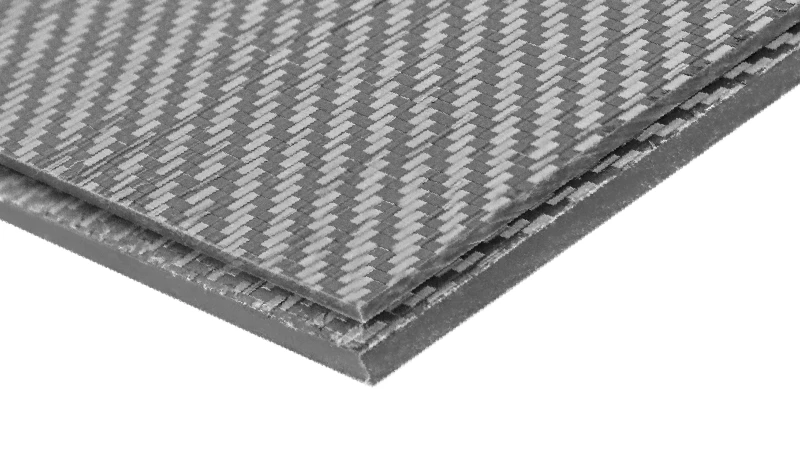

REV has introduced MAXComposite in two thickness options, making this high performance material accessible to everyone. MAXComposite is designed for applications requiring strength, impact resistance, and abrasion resistance, all while being 25% lighter...

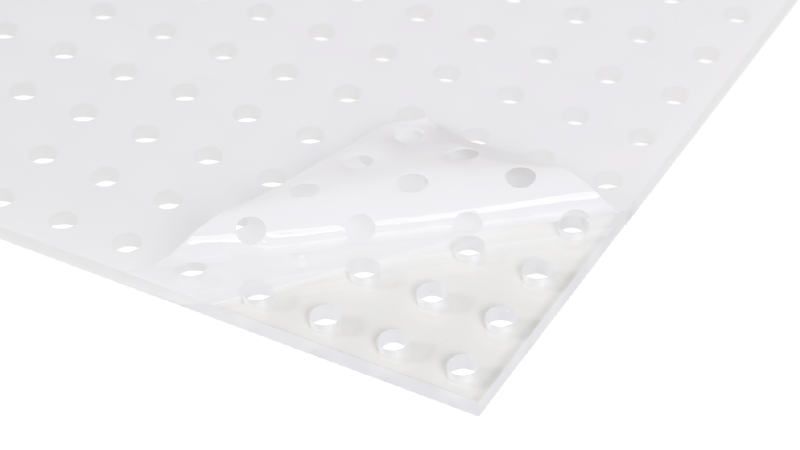

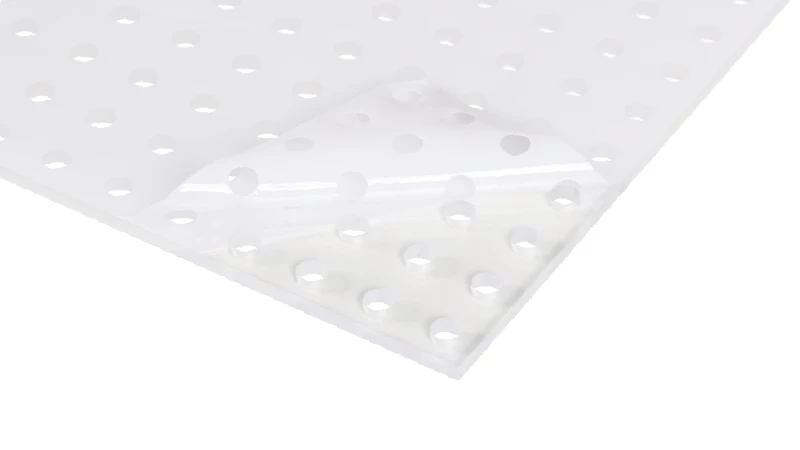

Polycarbonate Sheet offers an ideal solution for lightweight, durable, and customizable components. With five(5) 1mm thick sheets measuring 400mm x 350mm, this versatile material is perfect for crafting sponsor panels, branding graphics, intake...

The Differential Drivetrain Bumper Bracket Kit is compatible with the REV ION System and is designed to be a quick and convenient way to install FRC legal bumpers on the REV ION West Coast Drivetrain or even an AM14U based drivetrain with...

MAXTube Internal Supports are compatible with the REV ION System and facilitate bolt-through assembly within a MAXTube without causing permanent deformation. Crucial for ensuring structurally sound through-bolted joints and enable multiple supports to be...

MAXSpline Shaft Endcaps are compatible with the REV ION System and transform your MAXSpline Shaft extrusion into a live axle driven by a 1/2in Hex shaft. MAXSpline Shaft Endcaps come in two different materials: a durable plastic version and an upgraded...
