NEO Vortex & SPARK Flex

NEO Vortex and SPARK Flex



Unleash Versatility in Every Rotation with the Next Generation of Motors and Controllers

NEO Vortex, a high-power, high-performance, and high-resolution sensored brushless motor from REV Robotics. It features a dockable controller interface that can be mounted directly to the SPARK Flex or a standalone adapter allowing control from any brushless motor controller like the SPARK MAX. Its through-bore rotor is the heart of its unique interchangeable shaft system, facilitating easy integration with various robot mechanisms.

Highlighted Features:
  • High resolution encoder
  • Integrated motor parameter and calibration memory
  • Through-hex bore with taper for numerous quick-change shafts
  • No motor wires - reliable and robust docking connections for motor phases and sensor
  • Dual sensor, direct contact winding temperature sensing
  • 560KV (RPM per volt)
  • 640 Watts (375 @ 40A)

SPARK Flex, a new smart motor controller from REV Robotics. Its dockable form factor allows for the direct mounting onto a NEO Vortex, simplifying wiring while maintaining flexibility. Improving upon the foundation of the SPARK MAX, new features include 3-phase current sensing, reverse polarity protection, and an expanded data port with additional interfaces. When docked to an adapter, the SPARK Flex can control any existing NEO or compatible brushless/brushed DC motor.

Highlighted Features:
  • Docking interface for motor phases and sensors
  • USB type C configuration and control
  • PWM and CAN communication
  • Fully integrated power and control wires
  • Enhanced data port with more power, latching connector, and additional serial interfaces
  • Advanced motor control modes
    • Velocity
    • Position
    • Current
    • New modes with future firmware updates
  • 3 phase current shunt measurement
  • Reverse polarity protection
  • Software
    • Configure and update through REV Hardware Client
    • Updates and new features are free forever, without subscriptions or licenses

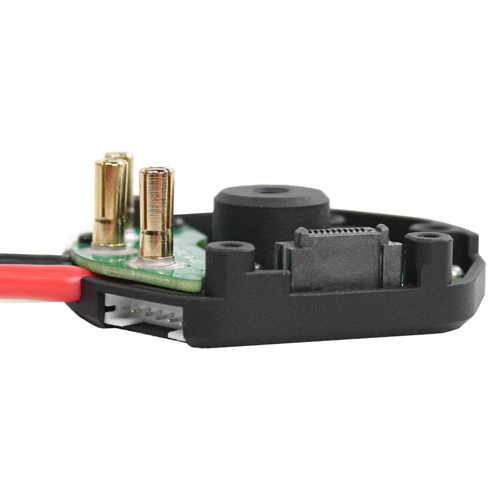

Vortex Flex Docking





NEO Vortex Brushless Motor

NEO Vortex Motor Controller

SPARK Flex Motor Controller

SPARK Flex Motor Controller

Vortex Shafts

Vortex Hex Shafts
