Description

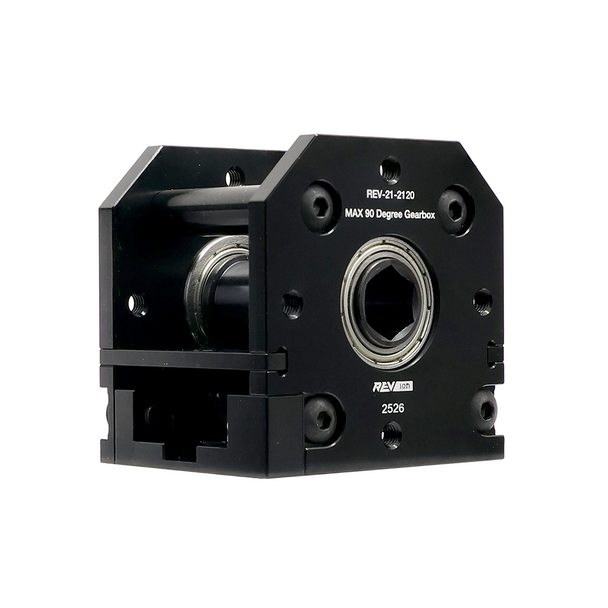

Designed for use with the REV ION System and with an efficient right-angle configuration, the MAX 90 Degree Gearbox offers a robust and high-performance solution to building a more compact robot. Connect the MAX 90 Degree Gearbox to the MAXPlanetary System in a 90-degree orientation for maximum flexibility and ease of use in tight spaces. The through bore design of the gearbox allows for easy mounting and integration into a wide range of applications. Its 90-degree output orientation provides a compact and efficient way to transmit power and torque at right-angle configurations.
Features
- Compatible with MAX Pattern
- All metal construction
- Socket 1/2in hex input

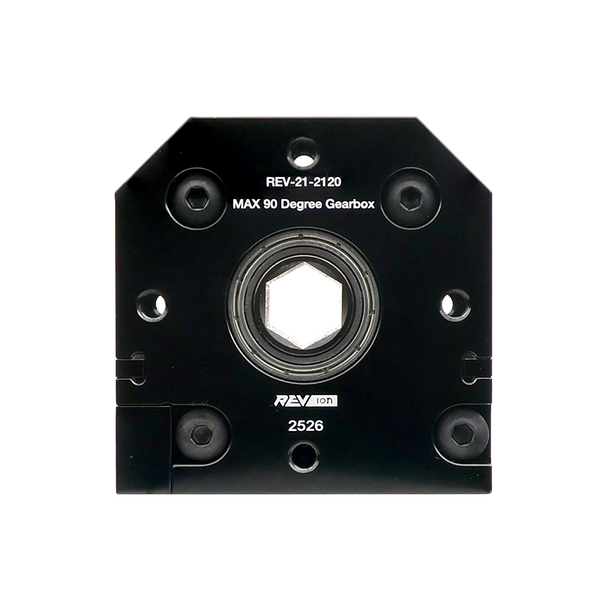

- Through bore 1/2in hex output
Specifications
- Materials:
- Body: Aluminum 6061
- Gears, Shafts, & Adapter: Steel
- Weight:
- Gearbox: 312.5g (0.69lb)
- Adapter: 15.0g (0.03lb)
Load Ratings
- Gearbox ultimate strength - Failure at 180 NM +/- 5%
Kit Contents
| SKU | PRODUCT NAME | QUANTITY |
| REV-21-2120-P01 | MAX 90 Degree Gearbox Output Shaft | QTY 1 |
| REV-21-2120-P02 | MAX 90 Degree Gearbox Output Shaft Bevel Gear | QTY 1 |
| REV-21-2120-P03 | MAX 90 Degree Gearbox Input Shaft | QTY 1 |
| REV-21-2120-P04 | MAX 90 Degree Gearbox Side Plate | QTY 2 |
| REV-21-2120-P05 | MAX 90 Degree Gearbox Bottom Plate | QTY 1 |
| REV-21-2120-P06 | MAX 90 Degree Gearbox Middle Plate | QTY 1 |
| REV-21-2120-P07 | MAX 90 Degree Gearbox Standoff | QTY 2 |
| REV-21-2125 | MAX 90 Degree Gearbox Bearing Pack | QTY 1 |
| REV-21-2126 | MAX 90 Degree Gearbox Hardware Pack | QTY 1 |

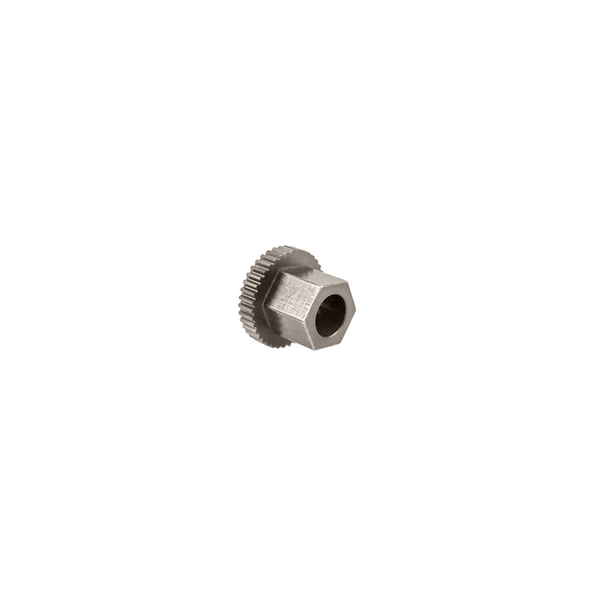

| REV-21-2122 | MAXPlanetary Spline to 1/2in Hex Adapter | QTY 1 |
Documentation
- ION Build System Guide
- MAX 90 Degree Gearbox Build Guide
- MAX 90 Degree Gearbox Assembly Wedge Instructions
