MAX Pattern Double Mount Adapter - 2 Pack

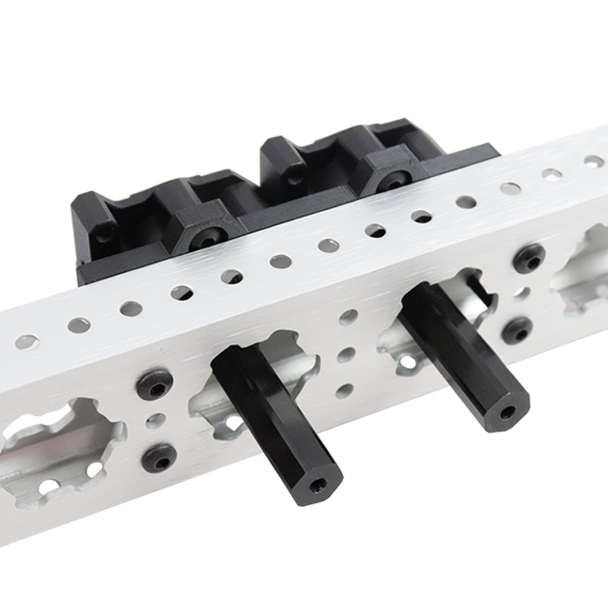

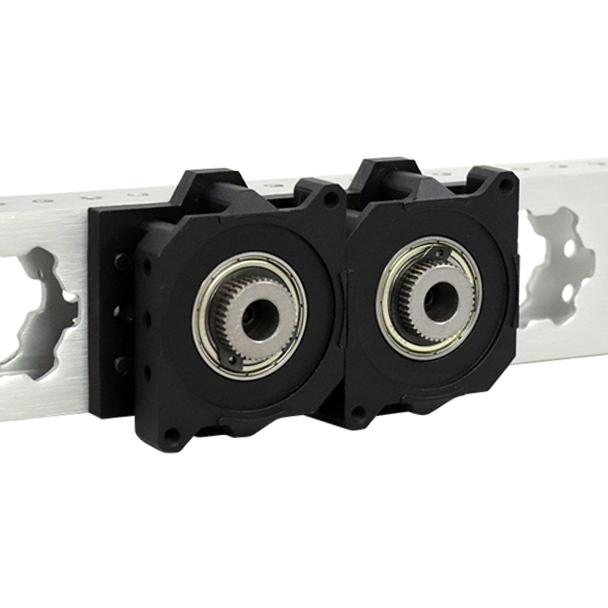

The MAXPlanetary Double Motor Adapter seamlessly integrates with the REV ION Build System, enabling the side-by-side mounting of MAXPlanetaries, UltraPlanetaries, or SPARK Flex/NEO Vortex combos onto MAXTube - 2x1 with MAX Pattern. This compact solution is perfect for space-saving designs, allowing motors to be positioned tightly together for efficient use of available space.

By enabling synchronized gearing of motion components, this adapter ensures precise timing and unison movement. Its compact design also simplifies wire routing and aids in achieving better weight distribution, making it an ideal choice for building streamlined and efficient robots.

Specifications

• Material: 6061 Aluminum
• Finish: Black Anodized
• Thickness: 6.40mm (0.25in)
• Weight: 75g (0.165lb)

CAD & Drawings

• REV-21-2859 STEP FILE
• REV-21-2859 ONSHAPE
  • Onshape Application Examples
• REV-21-2859 DRAWING
